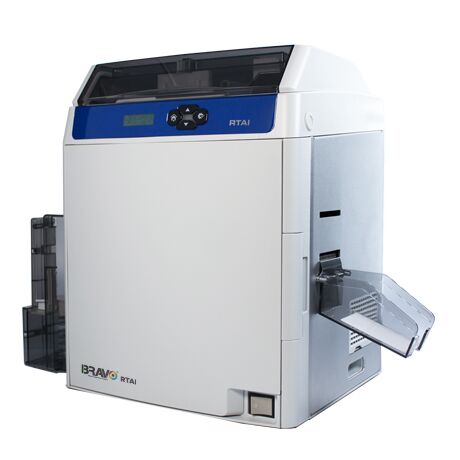

BRAVO RTAI

Unique Features

• Patch retransfer film 0.7 Mil for high card life without additional lam module
• Holographic retransfer film (standard & customised) to save on cost + time
• Special colour ribbons capable of printing Silver and Gold on card
• Unique printing technology on transparent card (innovative technology)
• Wooden cards (specially treated) can be used in the printer to sustain Eco-friendliness
• Special inline tactile printing as a desired overt security on card (generic/customised)

Introducing HOLO-MET™ (metallic lustre effect)
Enhance visual ID security using special holo-met secure ribbons

Specifications:

Printing Method Color dye Sublimation retransfer technology
Resolution: 600 DPI
Print Capability Single/Dual Sided, Over-the-Edge, Photo quality
Print Speed Single Side: 25 secs; Double Side: 55 secs
Input hopper Capacity 250 cards in a single go, can add cards while printing
Reject Tray Available
Card Thickness 0.5 -1.0 mm thickness
Security Features Own technology SOC, RFID ribbon, card feeder lock
User Friendliness Easy to replace consumables
Operating Environment Temperature: 15 – 30°C; Humidity: 35 – 95%
Storage Environment Temperature: 5 – 45°C; Humidity: 35 – 96%
Dimensions 12.25″(L) x 13.25″(W) x 17″(H)
Weight 22 kg (48 lbs.)
Warranty 3 years, Lifetime for print head
Driver Windows 32 and 64 bit, Windows 7,8,10
Power Supply Auto wide ranging 100-240V, 50/60 Hz
Card Capacity Auto Feeder: 250 cards (0.76mm thickness); Manual Feed
Cards Supported PVC, ABSS, PET, PET-G, PC, Wooden, Translucent; 85.6 x 53.98mm (ISO ID-1/CR-80 size)
Interface USB 2.0, Ethernet 10/100 Duplex mode
